Tippers |
|
Vehicle Model : Standard 4 - Brass Dumper Body |
This model detail currently unavailable, we are develop this model as per your requirment. |
|
|
|
|
|

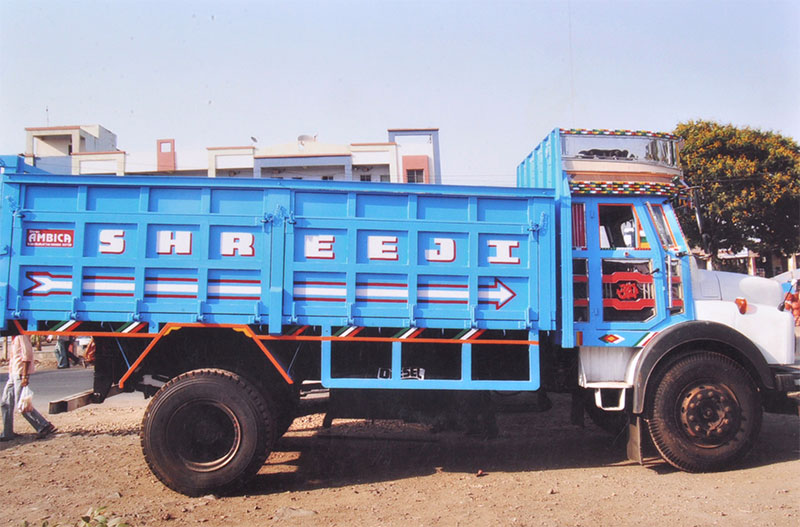

Vehicle Model : Tata 1616 Drop side body |
• |
Volumetric Capacity : 3.25 Brass |
• |
Overall Dimension of Body : 4250 X 2250 X 1000 |
• |
Tipping Angle : 90 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 3mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 5 mm thick steel plate reinforced by the cross bearers with body.
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : HYVA make cylinder - FC 110 N11H297288 or equivalent, oil tank.Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|

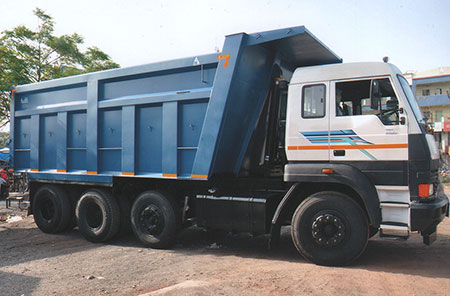

Vehicle Model: Tata 3118 Front End Body |
• |
Volumetric Capacity : 25 cm |
• |
Overall Dimension of Body : 5520 x 2275 x 1890 |
• |
Tipping Angle : 90 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 4mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 6 mm thick steel plate reinforced by the cross bearers with body
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : HYVA make cylinder - FC 149 P01H023418 or equivalent, oil tank.Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|

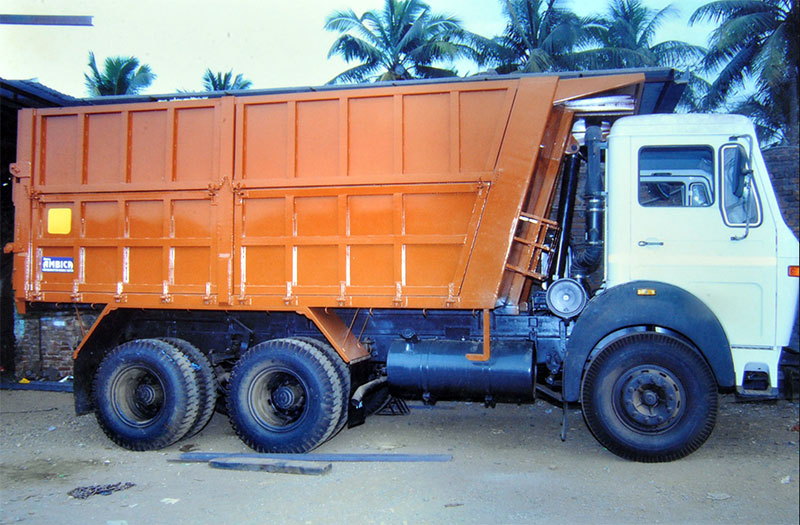

Vehicle Model : Tata 2516 Front End |
• |
Volumetric Capacity : 18 cm |
• |
Overall Dimension of Body : 4480 x 2230 x 2230 |
• |
Tipping Angle : 90 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 4 mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 6 mm thick steel plate reinforced by the cross bearers with body.
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : Wipro make cylinder - TCO 188 K2HT2474 or equivalent, oil tank. Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|
Vehicle Model : Tata 3118 FC Model Tipper |
• |
Volumetric Capacity : 20 cm |
• |
Overall Dimension of Body : 5700 x 2275 x 1500 |
• |
Tipping Angle : 90 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 4 mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 6 mm thick steel plate reinforced by the cross bearers with body.
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : HYVA make cylinder - FE 129 P03H106428 or equivalent, oil tank. Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|
Vehicle Model : Tata 3118 Front End |
• |
Volumetric Capacity : 20 cm |
• |
Overall Dimension of Body : 5520 x 2275 x 1520 |
• |
Tipping Angle : 110 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 4 mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 6 mm thick steel plate reinforced by the cross bearers with body.
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : HYVA make FE 149 cylinder - P02H037308 or equivalent, oil tank .Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|
Vehicle Model : Standard Load Body Tata 2515 |
This model detail currently unavailable, we are develop this model as per your requirment. |
|
|
|
|

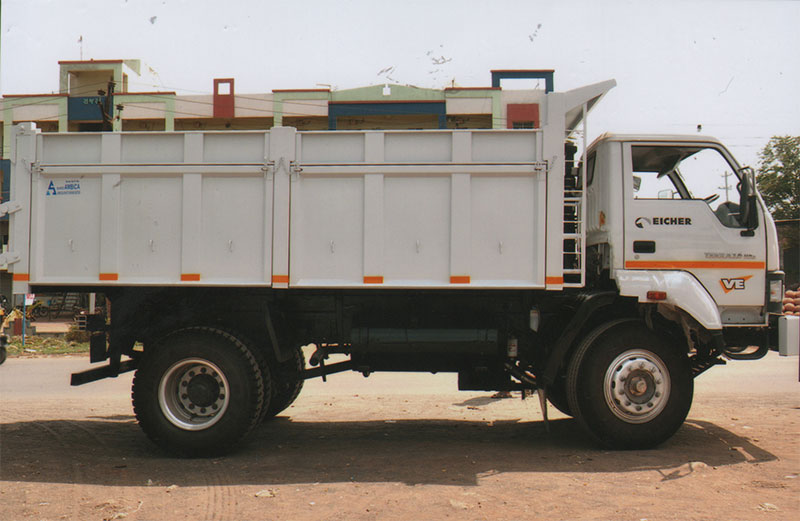

Vehicle Model : Eicher 35-31 4 Brass Body |
• |
Dimension of Body : 4830 mm x 2250 x 1170 |
|
|
|
|
|
|

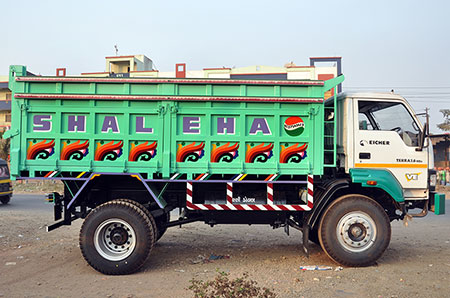

Vehicle Model : Standard 4 Brass Dumper Eicher Tera-16 |
|
|
|
|
|
Vehicle Model : 25 cm Eicher 3531 front end |
|
|
|
|

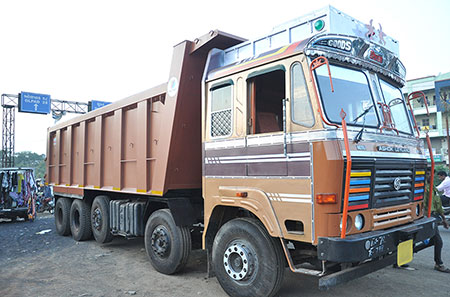

Vehicle Model : Ashok Leyland 3718 Front End |
• |
Volumetric Capacity : 28 cm |
• |
Overall Dimension of Body : 7200 x 2275 x 1980 |
• |
Tipping Angle : 90 Degree |
• |
Carrying Material : Stone |
• |
Side Panels : 4mm Thick Steel Plate Reinforced by front, rear and intermediate stiffeners With provision of Rock Breakers. |
• |
Canopy : Full Coverage to the Hoist Of adequate strength. |
• |
Floor : |
|
• 6 mm thick steel plate reinforced by the cross bearers with body
• The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar
• They assist in softening the effect of heavy rocks on the floor
• Hence increasing life of the body. |
• |
Tail Door : 4 mm thick steel, reinforced with intermediate stiffeners. |
• |
Hoist : HYVA make cylinder - FC 169 P01H023418 or equivalent, oil tank.Air control valve, Necessary hoses and fittings, Body Clamp. |
• |
Other Features : Ladder pipe, Mud Guard, mud flap, tail lamp guards. |
• |
Painting : Painted with one coat of zinc chromate primer and two coats of quick drying Enamel paint of Costumer choice. |
|
|
|
|
|
|

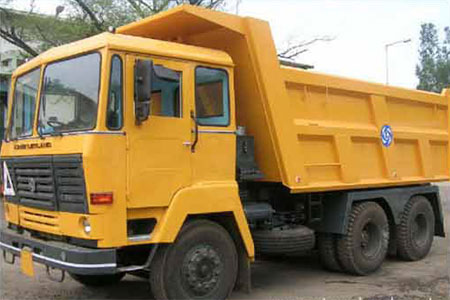

Vehicle Model : Ashok Leyland 14cm Front End |
|
|
|
|
|
|
